从0到1完成前后端分离的web项目

Posted on Edited on In

从0到1完成前后端分离的web项目

最简最少技术栈创建一个完整项目

技术栈：

后端： springboot + mybatis（注解形式）
前端： jquery+layUI

项目启动

创建spring项目

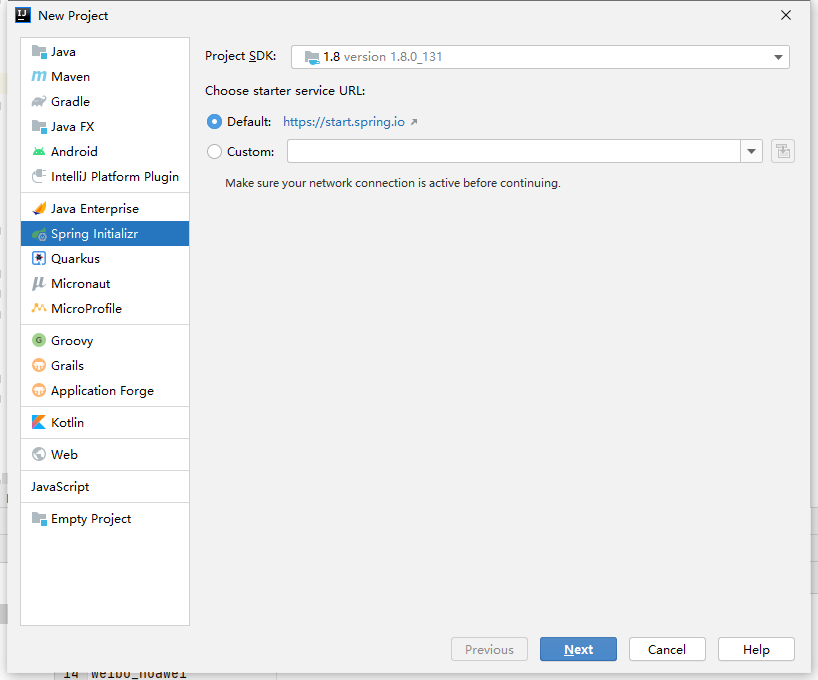

打开idea 点击新建项目，选择spring initializr

upload successful

一步一步往下填写相关信息，填错了也无所谓，可以复制我的pom文件

pom文件配置

配置mybatis和必要启动组件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.0.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.dql</groupId>
    <artifactId>retailmanager</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>retailmanager</name>
    <description>team work</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.4</version>
        </dependency>
        <!--mysql数据库驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

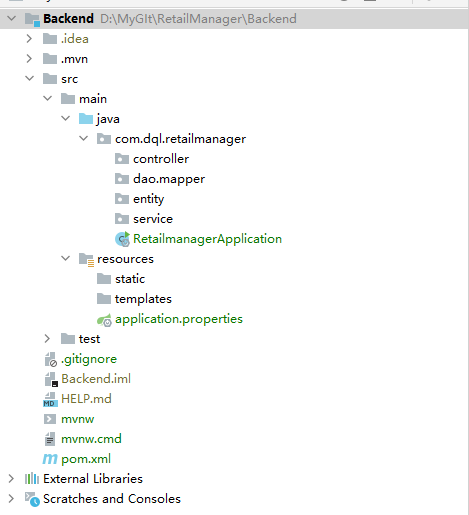

配置基础文件结构

upload successful

数据库配置

选择一个数据库，这里选择mysql，无所谓。

创建utf8的数据库

CREATE DATABASE retail_manager DEFAULT CHARACTER SET utf8 COLLATE utf8_general_ci;

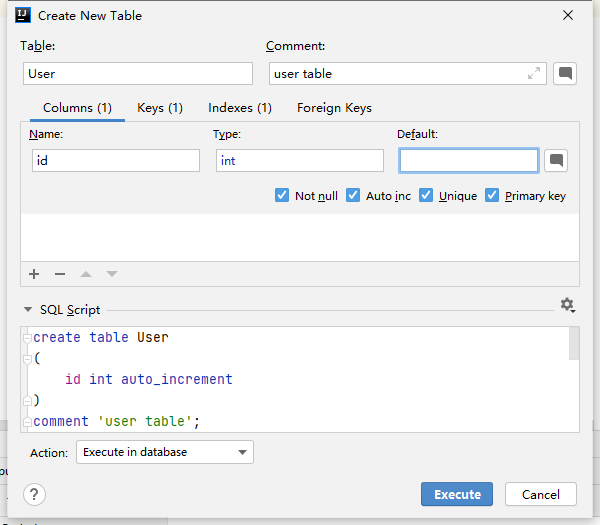

创建用户表

可以用命令行，或者navicate或者idea自带的管理工具

upload successful
upload successful

创建实体类和mapper

实体类bean应该遵守阿里的相关约定，dto vo po 以及互相转换的orika

这里推荐选择lombok，这个插件的好处是不用写getter和setter，可以让代码更加精简。

mapper需要配置mapper的resource文件，这个xml文件格式可以百度下，创建xml文件 填入模板

1
2
3
4
5
6
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.yourproject">


</mapper>

注意：生成的UserDao里面需要加上@Mapper注解否则无法被扫描到

创建service

注意sevice层的注解

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
package com.dql.retailmanager.service;

import com.dql.retailmanager.dao.mapper.UserDao;
import com.dql.retailmanager.entity.User;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service
public class UserService {
    @Resource
    UserDao userDao;

    /**
     * select user by primary key
     * @param id
     * @return
     */
    public User findUserById(int id) {
        return userDao.selectByPrimaryKey(id);
    }

    /**
     * add new user to db
     * @param user
     * @return
     */
    public int createUser(User user) {
        return userDao.insert(user);
    }

    /**
     * delete a user by primary key
     * @param id
     * @return
     */
    public int deleteUserById(int id) {
        return userDao.deleteByPrimaryKey(id);
    }

}

创建controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
package com.dql.retailmanager.controller;

import com.dql.retailmanager.entity.User;
import com.dql.retailmanager.service.UserService;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;

@RestController
@RequestMapping("/user")
public class UserController {
    @Resource
    UserService userService;

    @GetMapping("/getUserById")
    public User getUserById(@RequestParam int id) {
        return userService.findUserById(id);
    }

    @GetMapping("/deleteUserById")
    public int deleteUserById(@RequestParam int id) {
        return userService.deleteUserById(id);
    }

    @PostMapping("/addUser")
    public int addUser(@RequestBody User user) {
        return userService.createUser(user);
    }

    @PostMapping("/updateUser")
    public int updateUser(@RequestBody User user) {
        return userService.updateUser(user);
    }
}

配置文件配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
server:
    port: 8081
spring:
#数据库连接配置
    datasource:
        driver-class-name: com.mysql.jdbc.Driver
        url: jdbc:mysql://47.107.105.158:3306/test?characterEncoding=utf-8&useSSL=false
        username: root
        password: 123456

#mybatis的相关配置
mybatis:
    #mapper配置文件
    mapper-locations: classpath:mapper/*.xml
    #开启驼峰命名
    configuration:
        map-underscore-to-camel-case: true

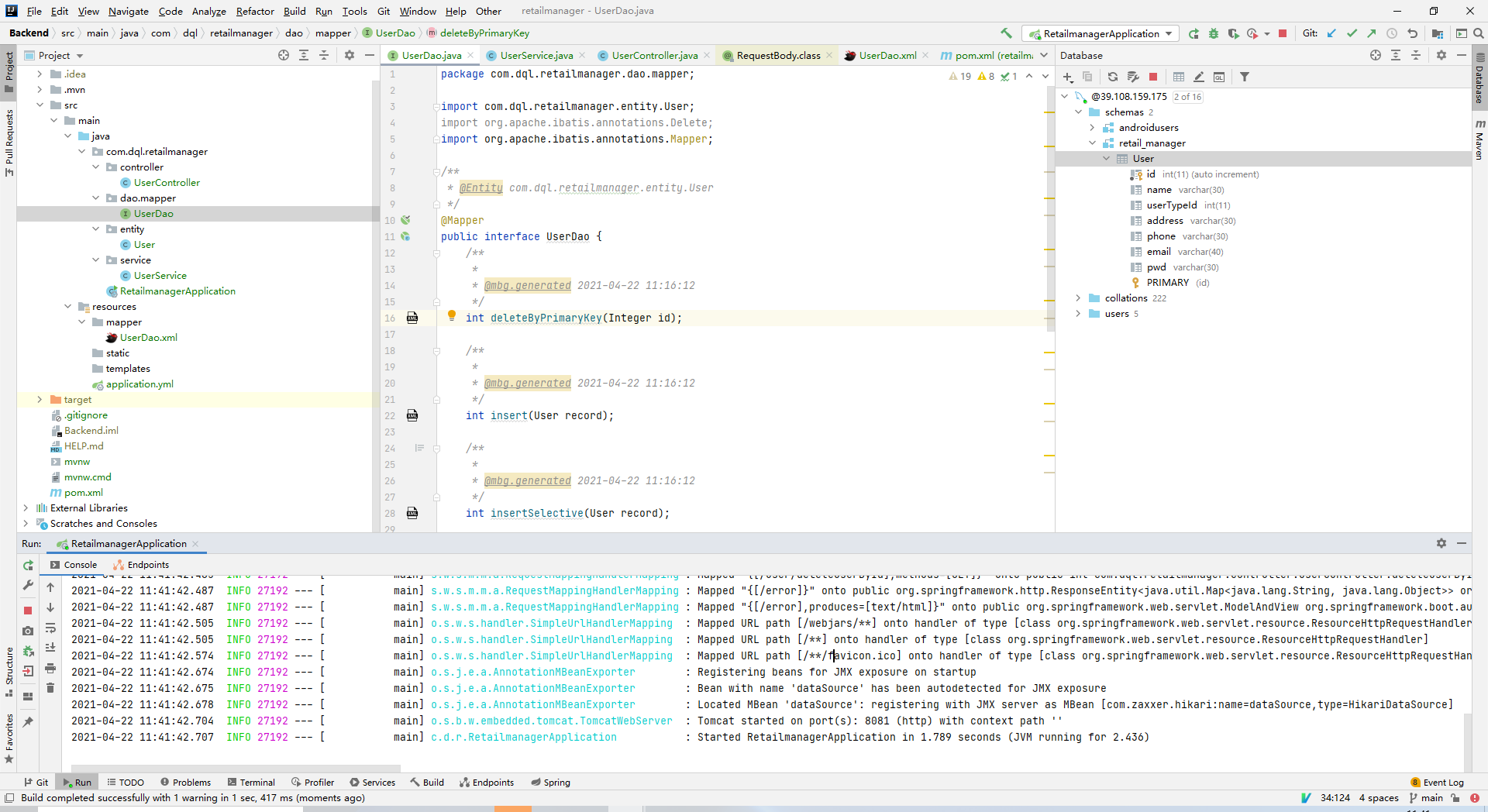

完成启动

upload successful

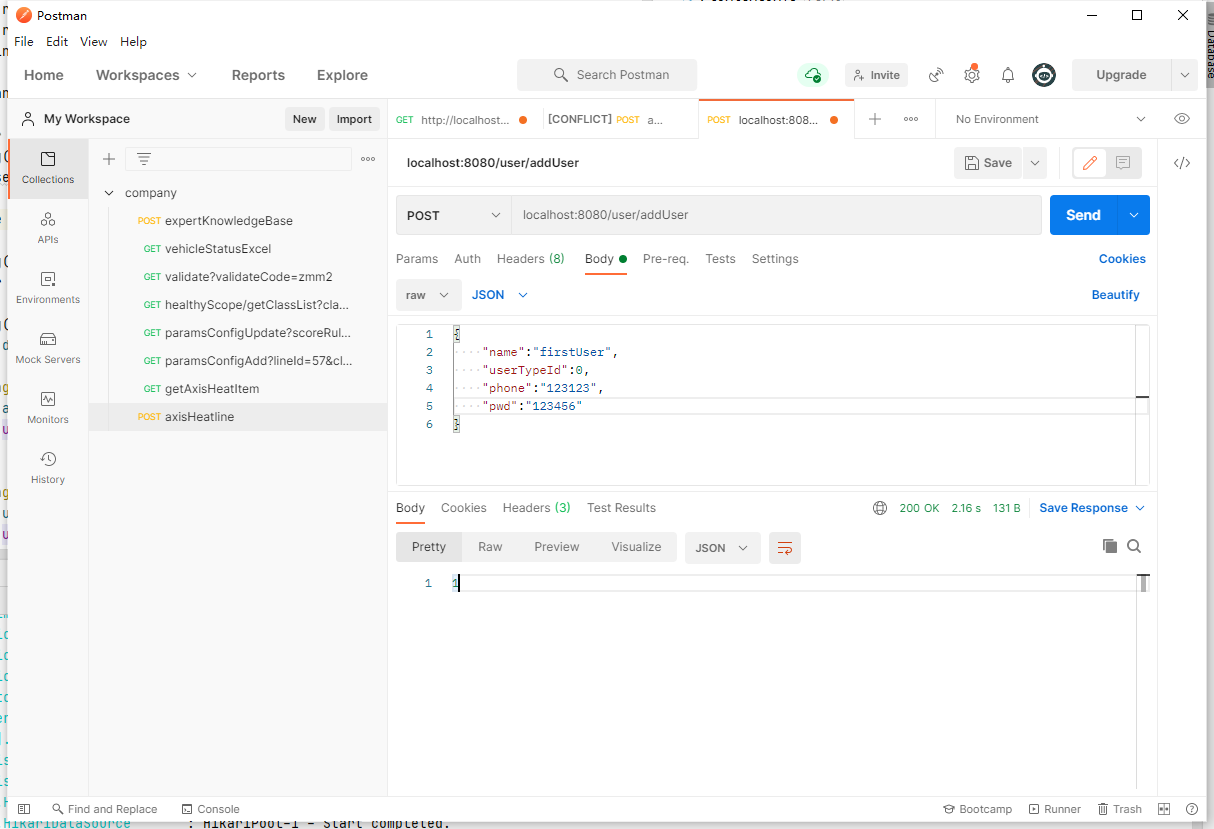

测试后台

upload successful

单点登陆校验

数据库配置session，本地使用localstorage存放sessionid，一般这个单点登录和分布式集群是用redis来管理的，但是这里为了不引入更多技术就用数据库了，问题不大。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
login.js:

import urlInfo from './baseURL.js'
    $(function () {
      layui.use('form', function () {
        var form = layui.form;
        layer.msg('login system....', function () {
          form.on('submit(login)', function (data) {
            // 生成token
            var rod = Math.round(1, 100);
            var md5rod = $.md5(rod + 'author');
            console.log(md5rod);
            $.get(urlInfo.baseUrl + urlInfo.login, {
              name: data.field.username,
              pwd: data.field.password,
              sessionToken: md5rod
            }, function (data, status) {
              if (data != null && data != "") {
                localStorage.setItem("token", md5rod);
                localStorage.setItem("userId", data.id)
                localStorage.setItem("user", data);
                location.href = 'index.html';
              } else {
                alert("error user or password");
                $("#login-name").val("");
                $("#login-password").val("");
              }
            });
            return false;
          });
        });
        //监听提交

      });
    })


check js:

// 判断是否登陆
        import urlInfo from './baseURL.js'
        layui.use(['element', 'layer'], function () {
            var element = layui.element;
            $.get(urlInfo.baseUrl + urlInfo.sessionCheck, {
                userId: localStorage.getItem("userId"),
                token: localStorage.getItem("token")
            }, function (data, status) {
                if (data == -1) {
                    // 用户未登录过 跳转到登陆页面
                    layer.msg('please login');
                    setTimeout(() => {
                        window.location.href = "./login.html";
                        window.event.returnValue = false;
                    }, 1500);
                } else {
                    console.log("logined user");
                }
            });
        });

前后端分离

配置nginx反向代理 解决跨域

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;

    server {
        listen       80;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
            index  index.html index.htm;
        }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }


    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # HTTPS server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;

    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_cache    shared:SSL:1m;
    #    ssl_session_timeout  5m;

    #    ssl_ciphers  HIGH:!aNULL:!MD5;
    #    ssl_prefer_server_ciphers  on;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}

	server{
		listen 			9999;
		server_name  localhost;
		location / {
			proxy_pass http://localhost:8081;
		}
		location /user/ {
			proxy_pass http://localhost:8080;
		}
		location /session/ {
			proxy_pass http://localhost:8080;
		}
	}

}

upload successful

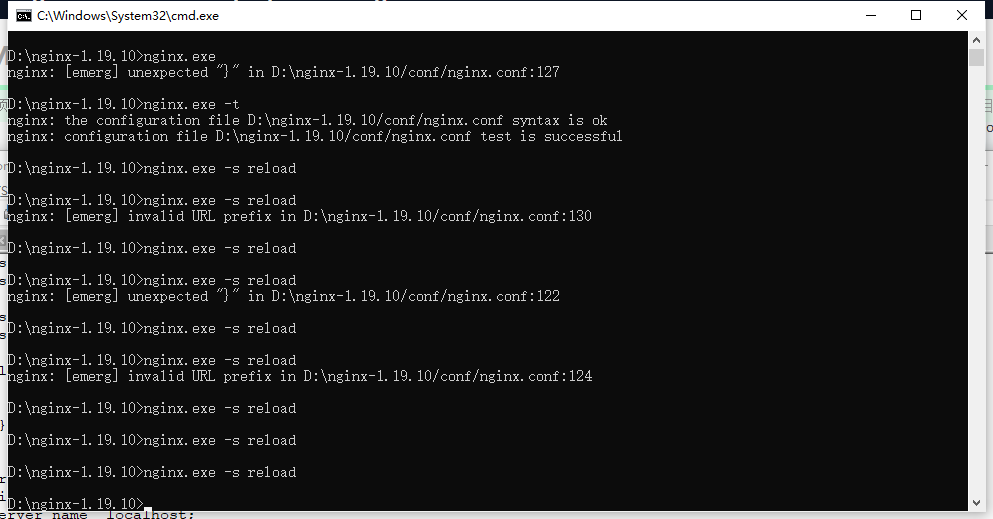

执行reload命令生效配置

配置分页器

pom

1
2
3
4
5
<dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.2.5</version>
        </dependency>

yml

1
2
3
4
5
6
# pagehelper
pagehelper:
    helperDialect: mysql
    reasonable: true
    supportMethodsArguments: true
    params: count=countSql
